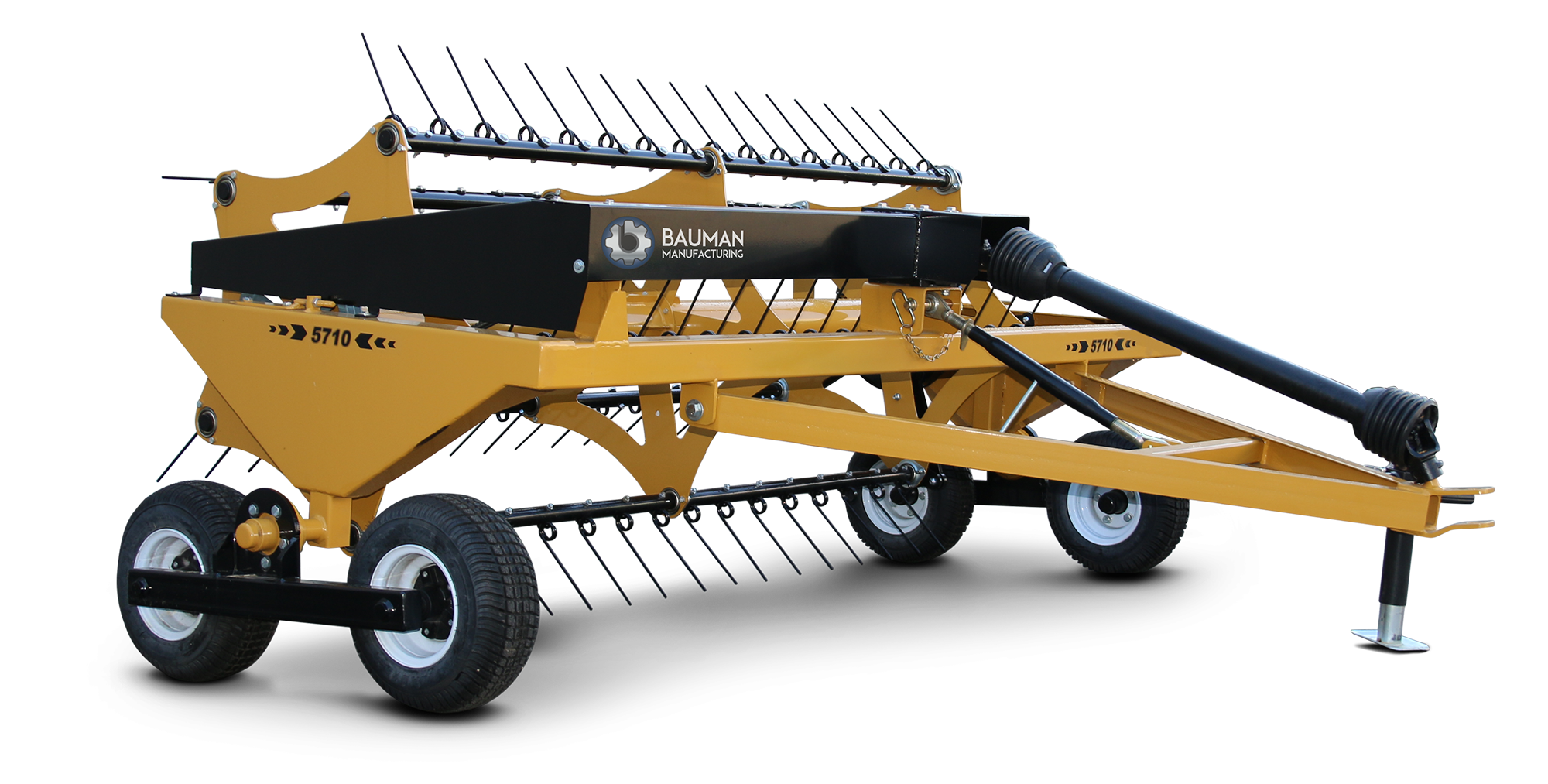

Model 5710 & 5910
Model 5710 & 5910
DRYER. FASTER.
The Bauman Hay Fluffer Tedder is designed to gently lift hay and straw windrows to promote greater air flow and quicker dry down times. Reduction of drying times allows for quicker baling; saving valuable feed for cattle and maintaining proper quality for export markets. Our Tedders are utilized by farmers growing feed for livestock, as well as larger commercial hay producers looking for greater production.
Specifications
Model 5710
Tedding Width: 7’
Number of Teeth: 100
Overall Width: 124 inches
Weight: 925 lbs
Overall Length: 107 inches
Overall Height: 53 inches
Tire Size: 15 inches
Tandem Tire Size: 8 inches
PTO Drive Speed: 540 RPM
Model 5910
Tedding Width: 9’
Number of Teeth: 130
Overall Width: 148 inches
Weight: 985 lbs
Overall Length: 107 inches
Overall Height: 53 inches
Tire Size: 15 inches
Tandem Tire Size: 8 inches
PTO Drive Speed: 540 RPM
Downloads
Key Features
Heavy Duty Five Bat Reel
Will not move or change the width of the windrow.
PTO Driven
Standard models are set up with PTO drive, unless Hydraulic is specified.
4.25” Tine Spacing
Turnbuckle
Allows the operator to mount the machine to any size tractor drawbar and adjust the tine sweep to approximately 1” above the ground.
Sealed Bearings
Clean sweep reel has sealed bearings for minimal maintenance. Protects against environmental wear.

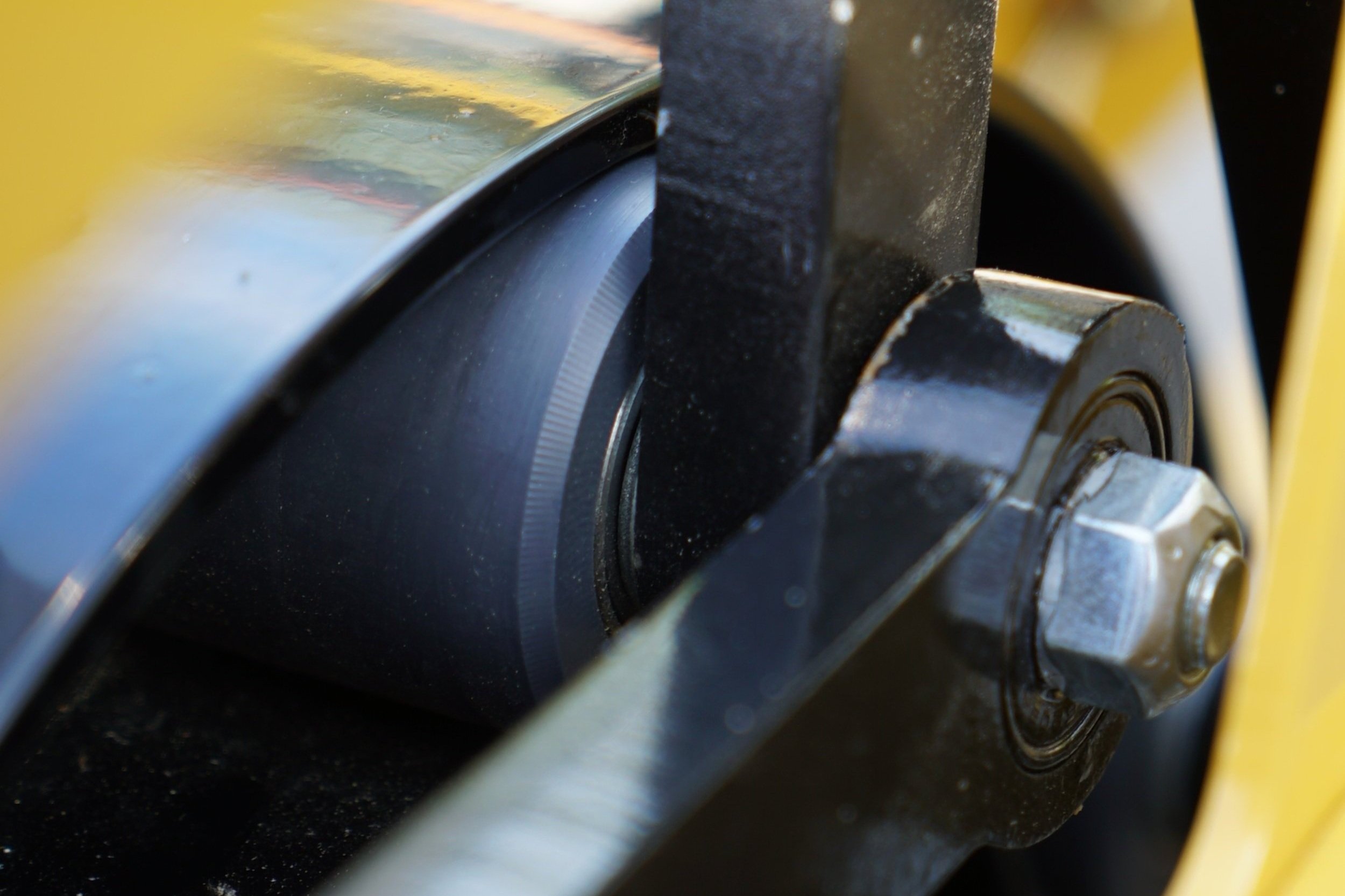

Tivar Cam Rollers
Durable tivar cam rollers allow the machine to run quieter.
Standard Jack Stand
Fully Assembled
Assembled by experienced staff members in our Elmira headquarters.
Simple Tine Angle Adjustment
Spring loaded tine angle lever allows the operator to adjust the tine angle higher or lower based on external conditions.
Options
Tandem Wheels
Optional tandem axle kits will make the going smoother in rough environments. Fits directly onto existing wheel hub for ease of exchange.

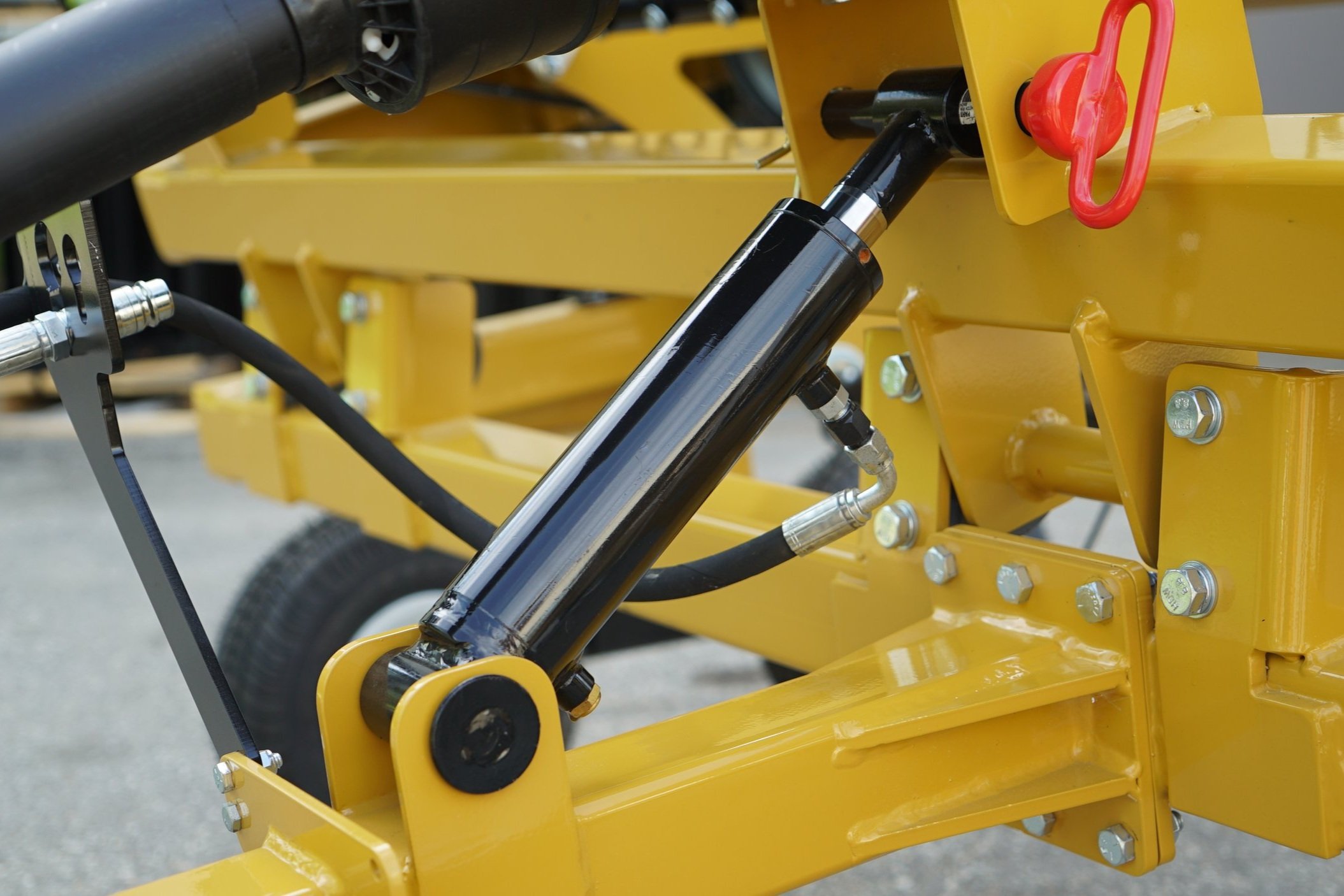

Hydraulic Reel Lift
Allows the operator to enter and leave the field without dragging the windrow or catching objects that may damage tines during transport. Also provides Precision Depth Adjustment with an adjustable depth stop.
Hydraulic Drive
Opting for hydraulic drive provides the opportunity to incorporate more than one machine for greater efficiency.
