Model 1140
Model 1140
The “Big Brother” to Model 640 the 1140 is available with Hydraulic or PTO drive options and a larger hopper capacity fit for larger tractors. This model also includes galvanized grate screens which prevent larger pieces of material from entering the hopper.
1140P
PTO shaft included. Optional salt distributor drum available for PTO model.
1140H - Hydraulic Drive with Vinyl Cover.
1140H
Hydraulic flow control and hoses included.
Specifications
Applicable to both PTO and Hydraulic drives.
Capacity: 11 Cubic Feet
Spreading Width: 40 inches
Estimated Spreading Distance: 9.5 km
Set up with sand distributor drum
Weight: 370 lbs
Dimensions: 47 inches wide x 32 inches high x 34 inches long
Downloads
Options
Universal Skid Steer Adaptor Plate
Extension Rings
Two sizes of extension rings are available for additional hopper capacity. The 6" ring adds 2.5 cubic feet of capacity and the 12" ring adds 5 cubic feet of capacity. Adding the 12" extension ring to the 640 provides the same total capacity as the 1140.
Key Features
Serviceable Bearings
Finger Bar
A unique polymer finger bar has a flexible memory in cold weather and retains its shape. The bar defines pressure and helps release an even quantity of de-icing material as seen with the cross hatch pattern when material is dropped.
Sand / Salt Drum
The rotating distributor drums spread de-icing material in an even and consistent cross hatch pattern. De-icing material can then "creep" and spread out which results in an efficient use of material.
Spread Pattern
The rotating distributor drums spread de-icing material in an even and consistent cross hatch pattern.
Agitator Bar
The agitator bar rotates in the hopper to help keep salt and sand from bridging or clumping. The bar ensures the material passes through to the drum and then to the ground for an even application.
Galvanized Grate & Lifting Lug
The grate prevents larger pieces of material from entering the hopper. As a safety measure, it further prevents human contact with the agitator. The lifting lug is used to maintain the grate’s security, and to safely install or remove unit from tractor.
Tension Lever Assembly
The assembly regulates the rate of flow for different types of material (i.e.: fine sand vs coarse salt). The lever allows for fine tuning of the rate of flow of material.
Specific to the 1140P - PTO Drive

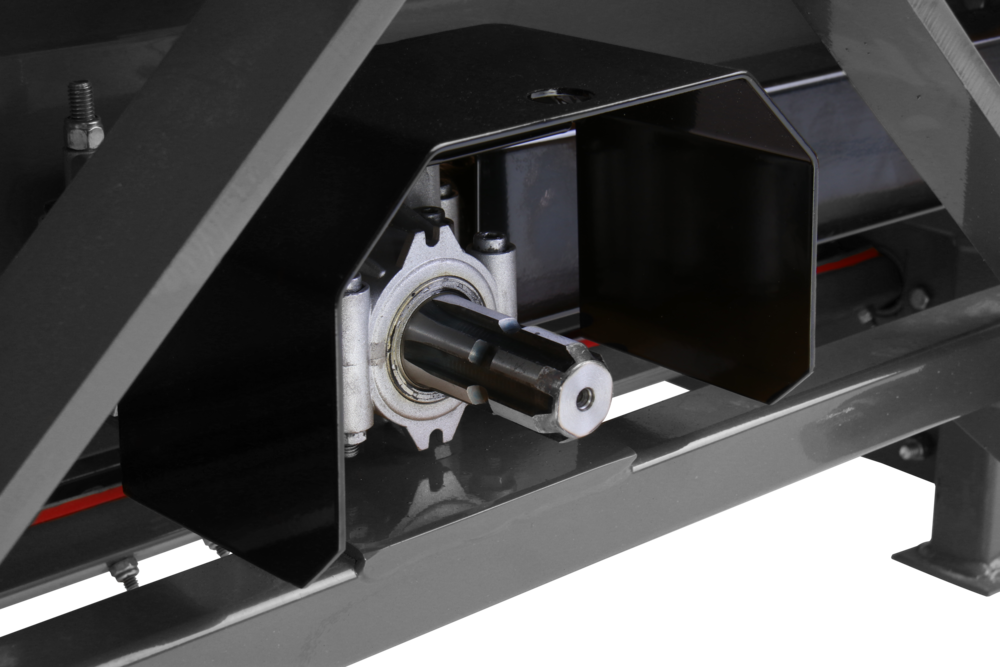

PTO Drive Shaft and Gearbox
Specific to the 1140H - Hydraulic Drive
Hydraulic Flow Control
Flow control is included to reduce hydraulic flow from the tractor to the distribution drum. It allows the operator to control distribution quantity.
