Construction: Powder coated mild steel

4.25” Tine Spacing: Even spacing between steel spring tines creates a clean and consistent sweep through the windrow, ensuring maximum coverage while maintainingminimal damage to crop.

Simple Tine Ange Adjustment: The adjustment pin allows the operator to change the angle of the spring tines in order to increase or decrease the lift. The + symbol will move the spring tines to a more steeper incline, throwing the crop higher, while the - symbol will do the opposite.

Precision Depth Adjustment: Raise or lower the reel to match your field requirements with the standard turnbuckle or optional depth stop (only available with hydraulic reel lift). 1-2" clearance from the ground is recommended.

Heavy-Duty 5 Bat Reel

Nylon Cam Rollers

Tedding Width: 7’

Number of Teeth: 100

Overall Width

• Tandem Models: 119”

• Single Tire Models: 124”

Overall Length: 107”

Height: 53”

Tire Size

• Tandem: 8”

• Single: 15”

Drive Type: 540 PTO or Hydraulic

Construction: Powder coated mild steel

Tedding Width: 9’

Number of Teeth: 130

Overall Width

• Tandem Models: 143”

• Single Tire Models: 148”

Overall Length: 107”

Height: 53”

Tire Size

• Tandem: 8”

• Single: 15”

Drive Type: 540 PTO or Hydraulic

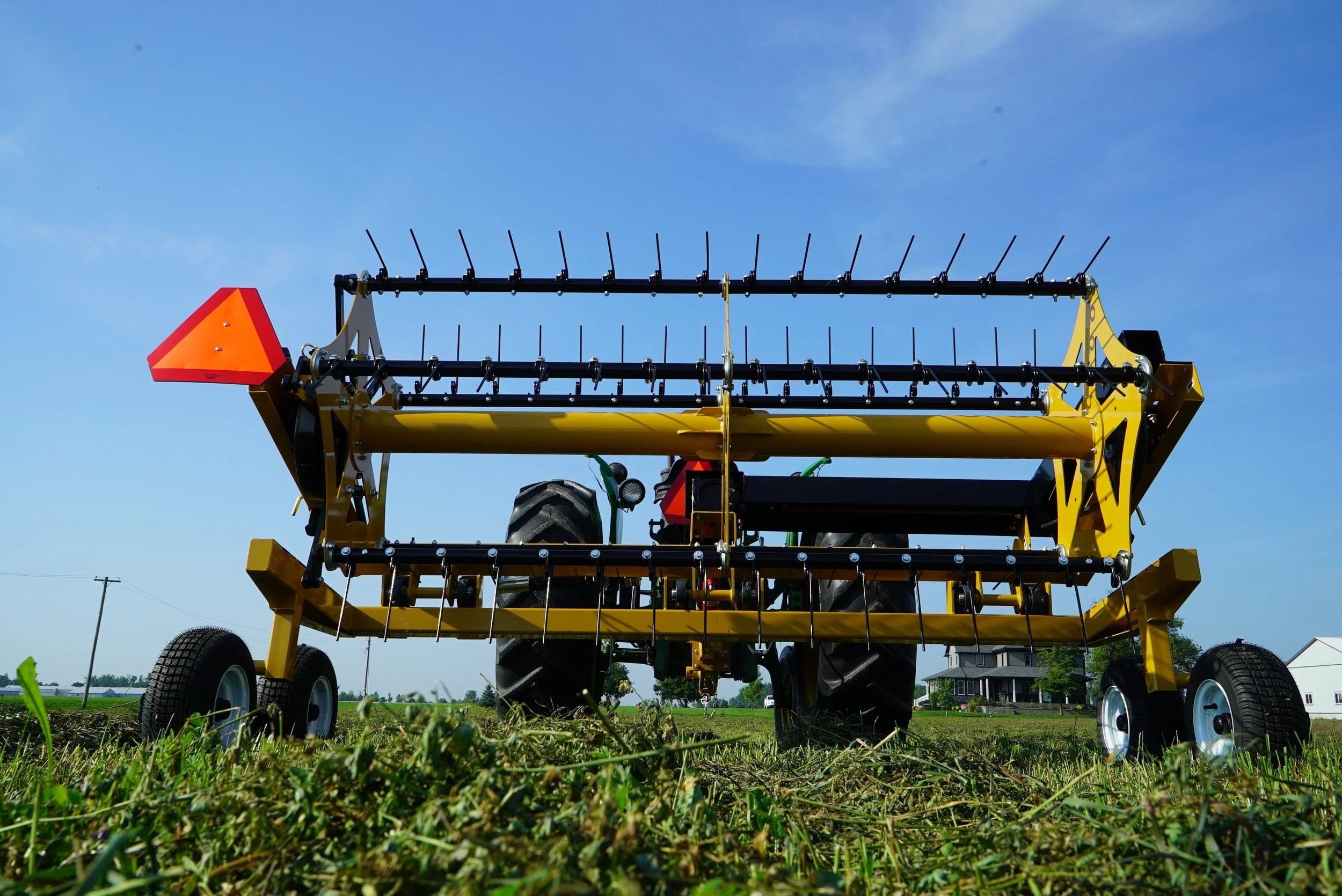

Hydraulic Reel Lift: This option allows the operator to enter, exit, and maneuver the field without disturbing the windrow. Adjustable depth stop provides security for the reel once height has been set.

Tandem Tires: This bolt-on axle kit is ideal for rough terrain, providing stability and cushion. This component can be easily bolted onto the existing hub framework.

Based on the machines’ size and width, it works best in small-field applications and is used by both equine and beef farmers, as well as commercial hay operations for 4-5' tall hay and grains such as alfalfa, wheat and barley.

One Year Limited Warranty

90 Days on Replacement Parts

If the unit fails to operate within one year from date of purchase because of defects in materials or workmanship, Bauman Manufacturing will, at its option, either replace or repair such components for the original purchaser. This warranty does not cover damage resulting from accident, misuse or abuse, water, tampering, servicing performed or attempted by unauthorized agencies, or units that have been modified in any fashion. If the components do not perform as warranted herein, the original purchaser’s sole remedy will be the repair or replacement of the components as provided above. Bauman Manufacturing products are not intended for applications where a failure could result in a costly, dangerous or life-threatening situation. Bauman Manufacturing will not be held responsible for damages or losses greater than the cost of the Bauman Manufacturing replacement parts. In no event will Bauman Manufacturing be liable for damages, lost revenue, lost wages, lost savings or any other incidental or consequential damages, domestic or international, rising from the purchase and use or inability to use the components, even if Bauman Manufacturing has been advised of the possibility of such damages. Except as provided herein, Bauman Manufacturing makes no warranties, express or implied, including without limitation, the implied warranties of merchantability and fitness for a particular purpose, with respect to the components. All warranties for the components, express or implied, are limited to the warranty period set forth above.

Warranty Service

In order to obtain the remedy of repair or replacement parts, contact Bauman Manufacturing.
