Construction: Galvanized & mild-steel powder-coated body sections and components

Drive: Electric (Gear-Reducer) or Hydraulic

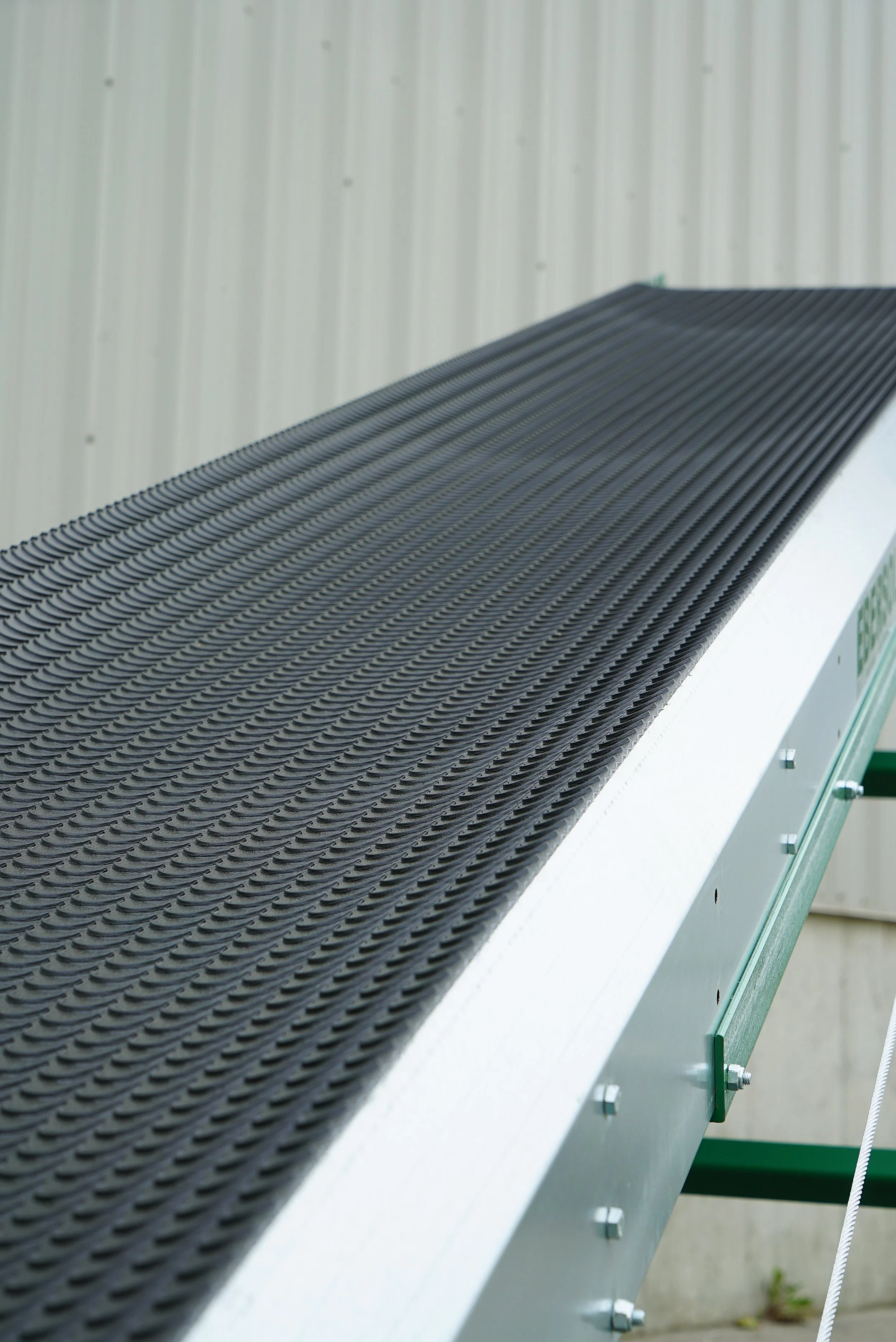

Belt Style: PVC Crescent-Top (Standard, other options available)

Belt Speed: 230’ / Minute

Troughed Slider Bed: Creates concave feature in belt that efficiently collects material upon incline.

Lagged Drive & Tail Pulleys

Minimal Maintenance: Greaseable bearings and quality components ensure an easily maintained machine.

Simple Adjustment: Belt alignment can be controlled with threaded bolts at the base of the machine.

Angle of Incline: Machine can convey up to a 30-degree incline.

Varied Widths: based on handling requirements, we offer three standard widths that allow for alternate capacities.

• 14”, 18” and 24” standard widths available.

• 14” Capacity:

• 18” Capacity:

• 24” Capacity:

Galvanized Sides: To increase material capacity, sides with rubber skirting are available upon request.

• 6” High, 12ga material

Belt Scraper: mounted on the underside of the drive-end, the ?? belt scraper removes excess material that may stick to the belt surface.

Discharge Spout: Allows for a more accurate direction of material

Alternate Belt Styles: different styles of belting provide ways of transporting materials with varying features.

• Crescent Top (Standard

• Smooth Top

• Mini-Bite

• 1” Cleated

• PolarFlex

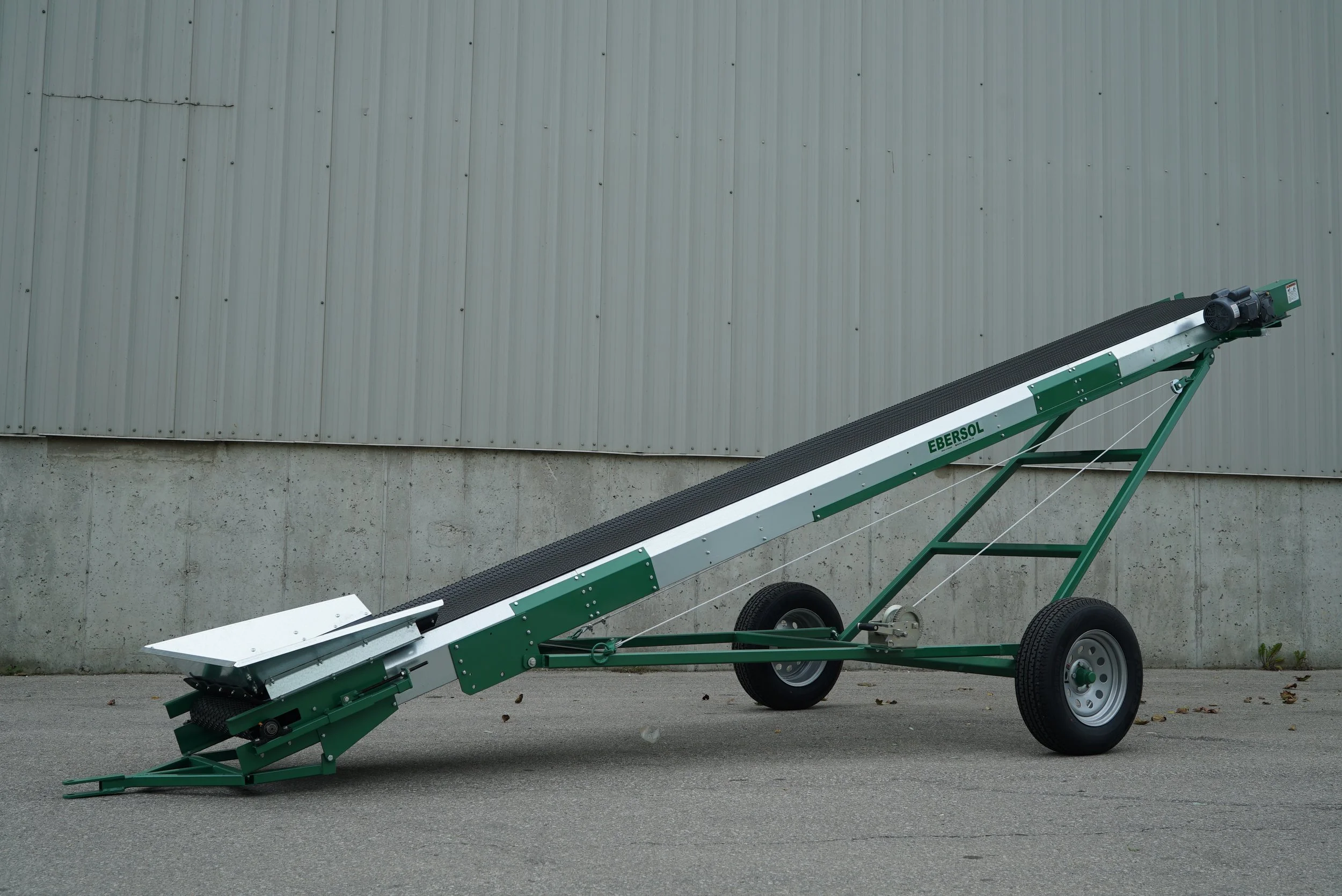

Undercarriage: The undercarriage system with a manual lifting winch and tires provides an opportunity to tow the conveyor from one point to another.

• Clevis Hitch (Standard)

• Optional 2” Ball Hitch or Pintle Ring

• 5000lb Axle, Greaseable Hub & Spindle Assembly

Hydraulic Power Pack: Mounted to the axle, the hydraulic power pack provides a self-driven unit powered by a gas engine.

• Compost

• Mulch & Soil

• Grains & Feed

• Manure

• Seeds

• Harvested Crops

• Agricultural Harvesting & Storage

• Recycling Facilities

• Animal Feed

One Year Limited Warranty

90 Days on Replacement Parts

If the unit fails to operate within one year from date of purchase because of defects in materials or workmanship, Bauman Manufacturing will, at its option, either replace or repair such components for the original purchaser. This warranty does not cover damage resulting from accident, misuse or abuse, water, tampering, servicing performed or attempted by unauthorized agencies, or units that have been modified in any fashion. If the components do not perform as warranted herein, the original purchaser’s sole remedy will be the repair or replacement of the components as provided above. Bauman Manufacturing products are not intended for applications where a failure could result in a costly, dangerous or life-threatening situation. Bauman Manufacturing will not be held responsible for damages or losses greater than the cost of the Bauman Manufacturing replacement parts. In no event will Bauman Manufacturing be liable for damages, lost revenue, lost wages, lost savings or any other incidental or consequential damages, domestic or international, rising from the purchase and use or inability to use the components, even if Bauman Manufacturing has been advised of the possibility of such damages. Except as provided herein, Bauman Manufacturing makes no warranties, express or implied, including without limitation, the implied warranties of merchantability and fitness for a particular purpose, with respect to the components. All warranties for the components, express or implied, are limited to the warranty period set forth above.

Warranty Service

In order to obtain the remedy of repair or replacement parts, contact Bauman Manufacturing.
