Wood Conveyor Features


Construction Features

  • Flared style through conveyor
  • 12 ga. heavy duty 5' bottom section
  • 8" wide trough flared out to 18" at top
  • 8" deep trough
  • 662 pintle heavy conveyor chain
  • 2" high serrated chain flight
  • Standard hopper included 32" wide
  • Available in 20, 25 & 30 foot lengths
  • Easy bolt together construction

Operation Features

  • Hydraulic or electric drive
  • Optional undercarriage allows for easy transportation and height adjustment
  • Handles firewood and similar types of material

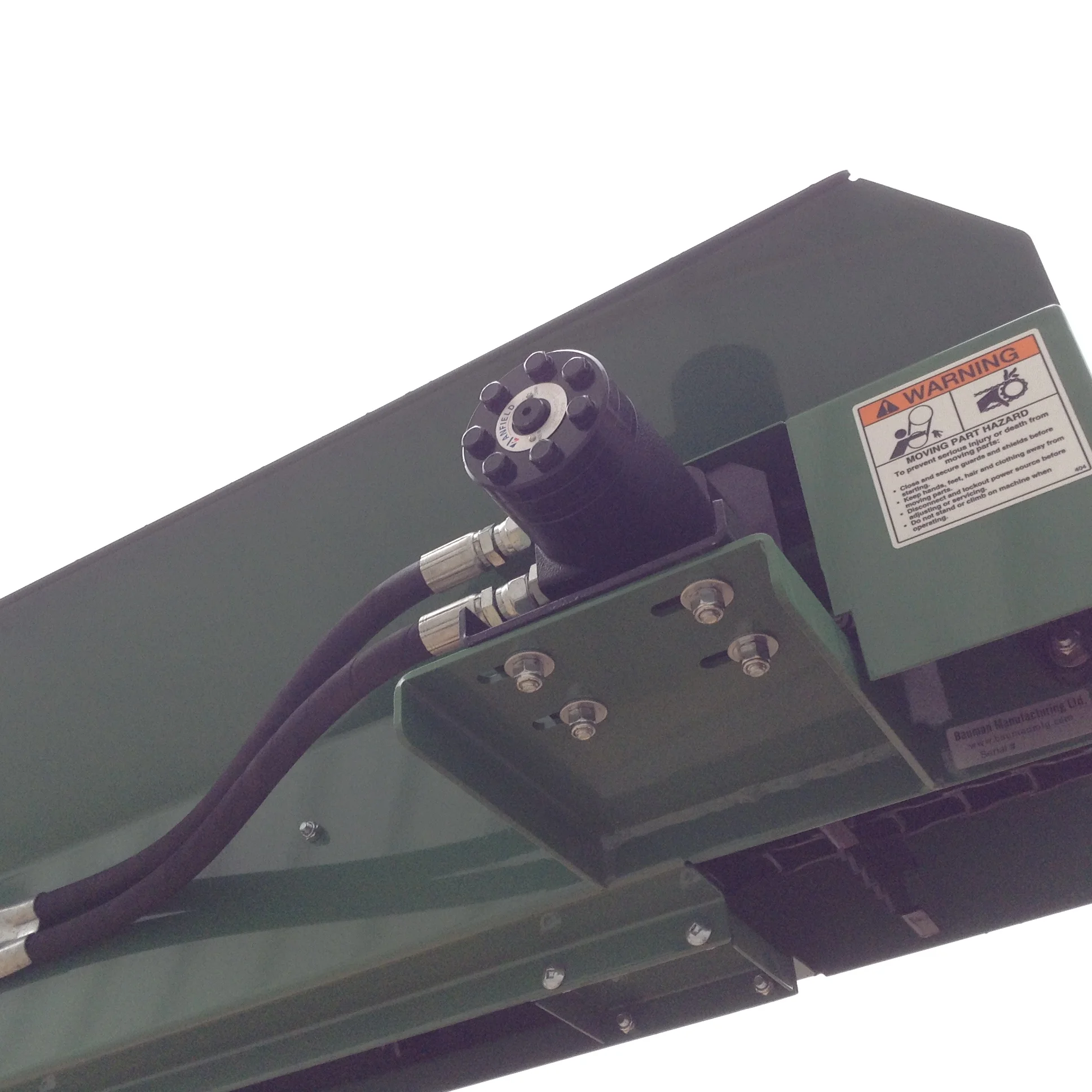

Drive End (Hydraulic)

Hydraulic or Electric Drive Motor






Hydraulic Power Pack

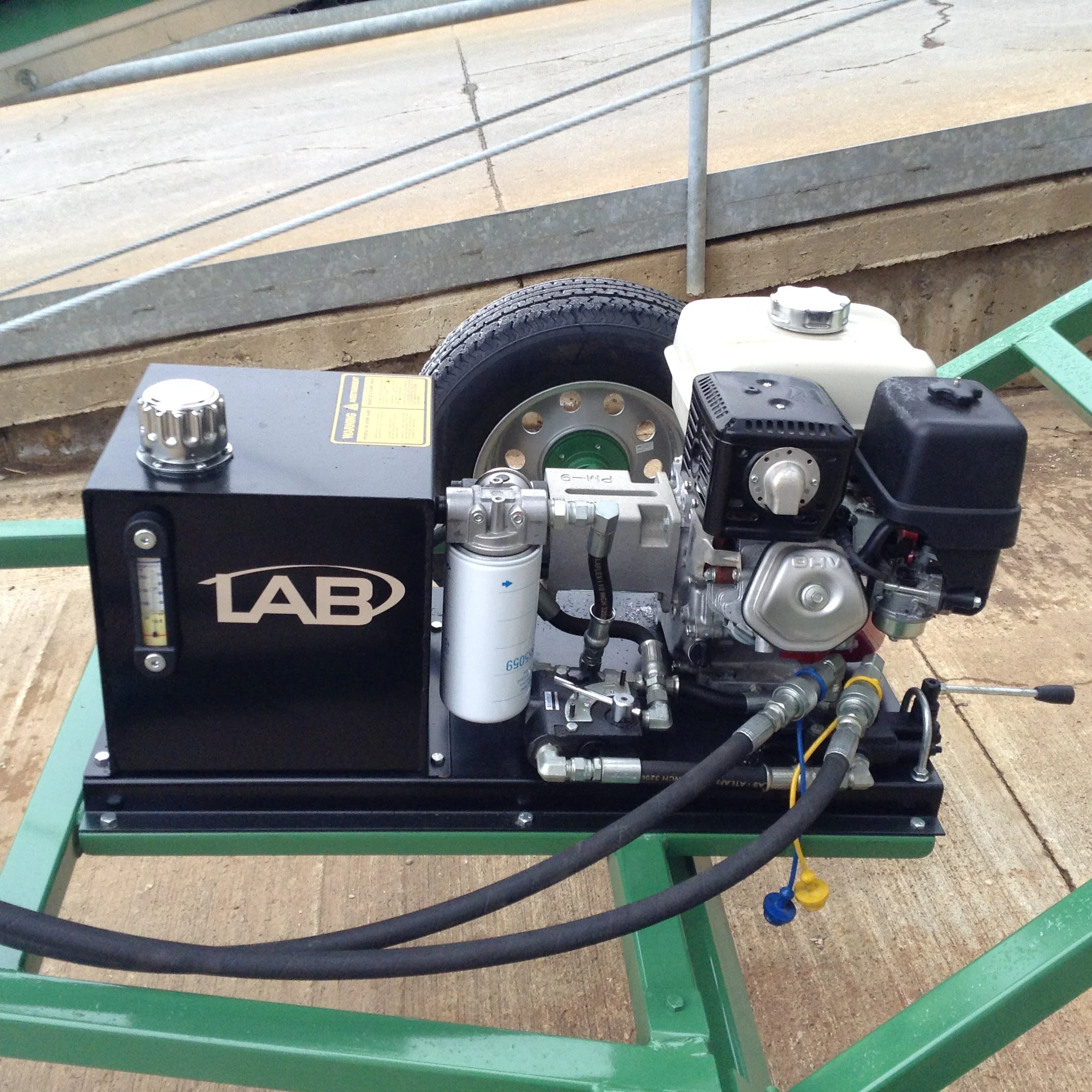

Available Gas Engine/Hydraulic Power Pack

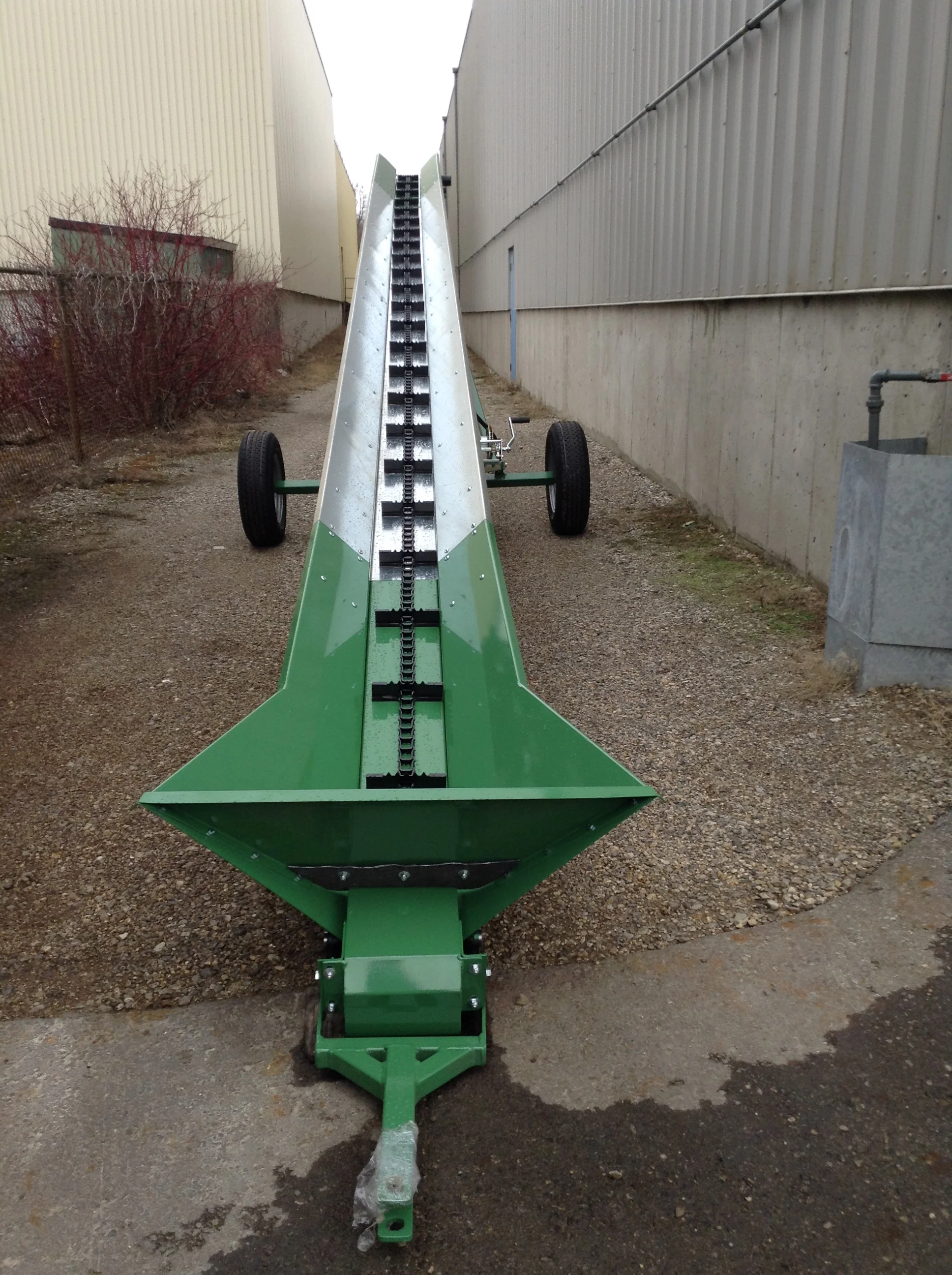

Top View

Flared Style Trough
8” Deep Trough
8” Wide Trough Flared to 18” at Top




Undercarriage with Winc

Optional Undercarriage with Winch
