Model 1040SI Features



The 1040SI is the only drop spreader specifically designed to fit a utility terrain vehicle's dump box.
It fits the Kubota RTV 1100 and the John Deere Gator.




12 Volt 1/4 hp DC Electric Motor

The 12 Volt 1/4 hp DC electric motor and reducer drives the 440E. The epoxy paint protects the unit from salt brine/slushy environment.



Electric motor.JPG

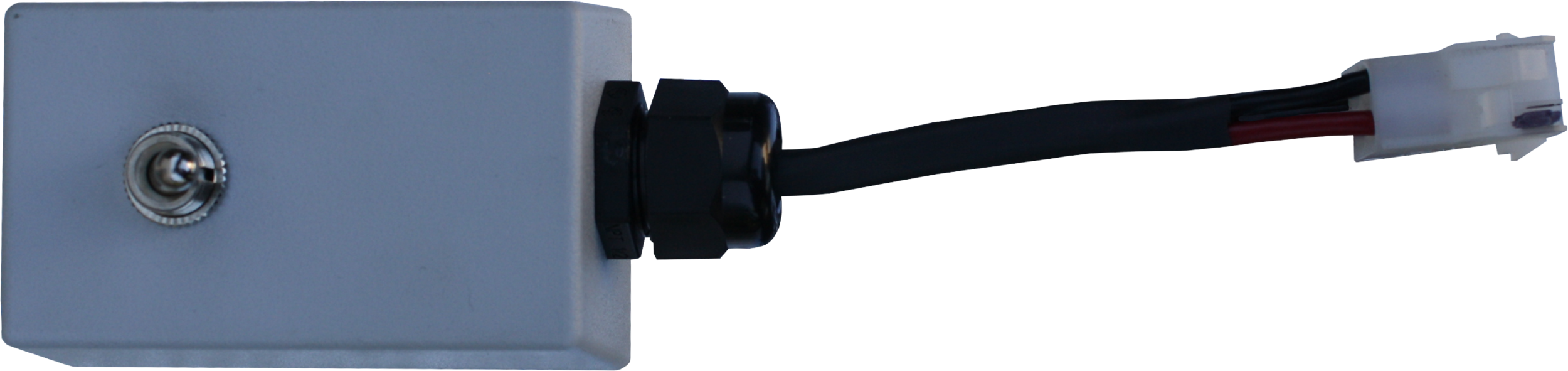

Wiring Kit

A complete braided wiring harness with inline fuse, switch and fuse is included with 440E and 1040SI models.

blob



Variable Speed Control

Variable speed control allows an operator to control distribution quantity.  These units are available for 440 and 1040SI electric driven drop spreaders only.




Construction

Using 12 gauge steel and a durable powder coat finish, the 1040 model is built to last.

VARIABLE SPEED CONTROL.png




Finger Bar

A unique polymer finger bar has a flexible memory in cold weather and retains its shape. The bar defines pressure and helps release an even quantity of de-icing material as seen with the cross hatch pattern when material is dropped.

Finger bar.JPG



Agitator Bar

The agitator bar rotates in the hopper to help keep salt and sand from bridging or clumping. The bar ensures the material passes through to the drum and then to the ground for an even application.



Agitator Bar



Salt / Sand Drum

The rotating drums allow placement of various de-icing material where needed. This gives controlled delivery of materials including sand, environmentally smart de-icing products as well as road and coarse rock salt.

Salt drum.JPG



Spread Pattern

The rotating distributor drums spread de-icing material in an even and consistent cross hatch pattern. De-icing material can then "creep" and spread out which results in an efficient use of material.

Spread pattern.JPG

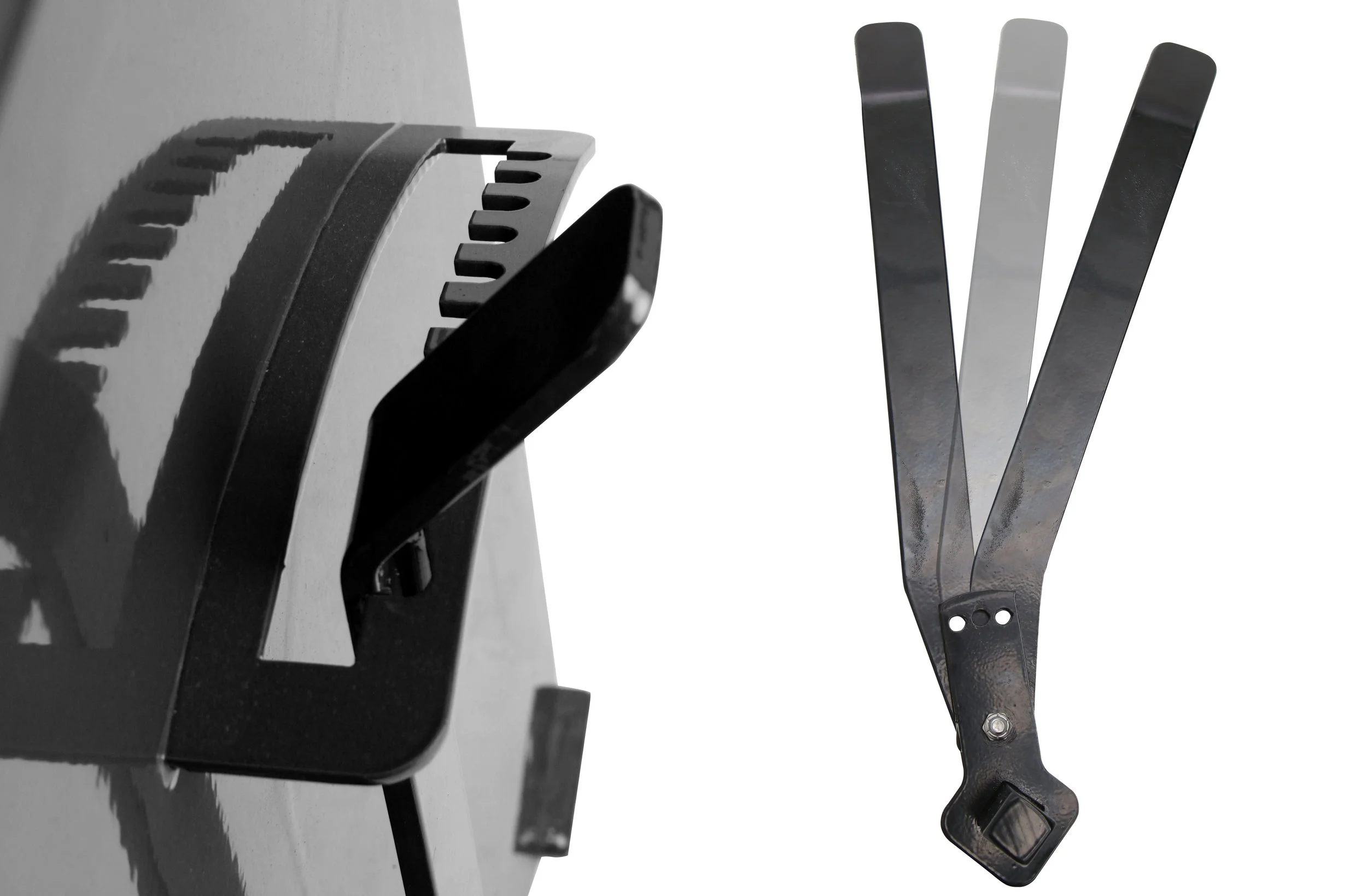

Tension Lever Assembly

The assembly regulates the rate of flow for different types of material (i.e.: fine sand vs coarse salt). The lever allows for fine tuning of the rate of flow of material.

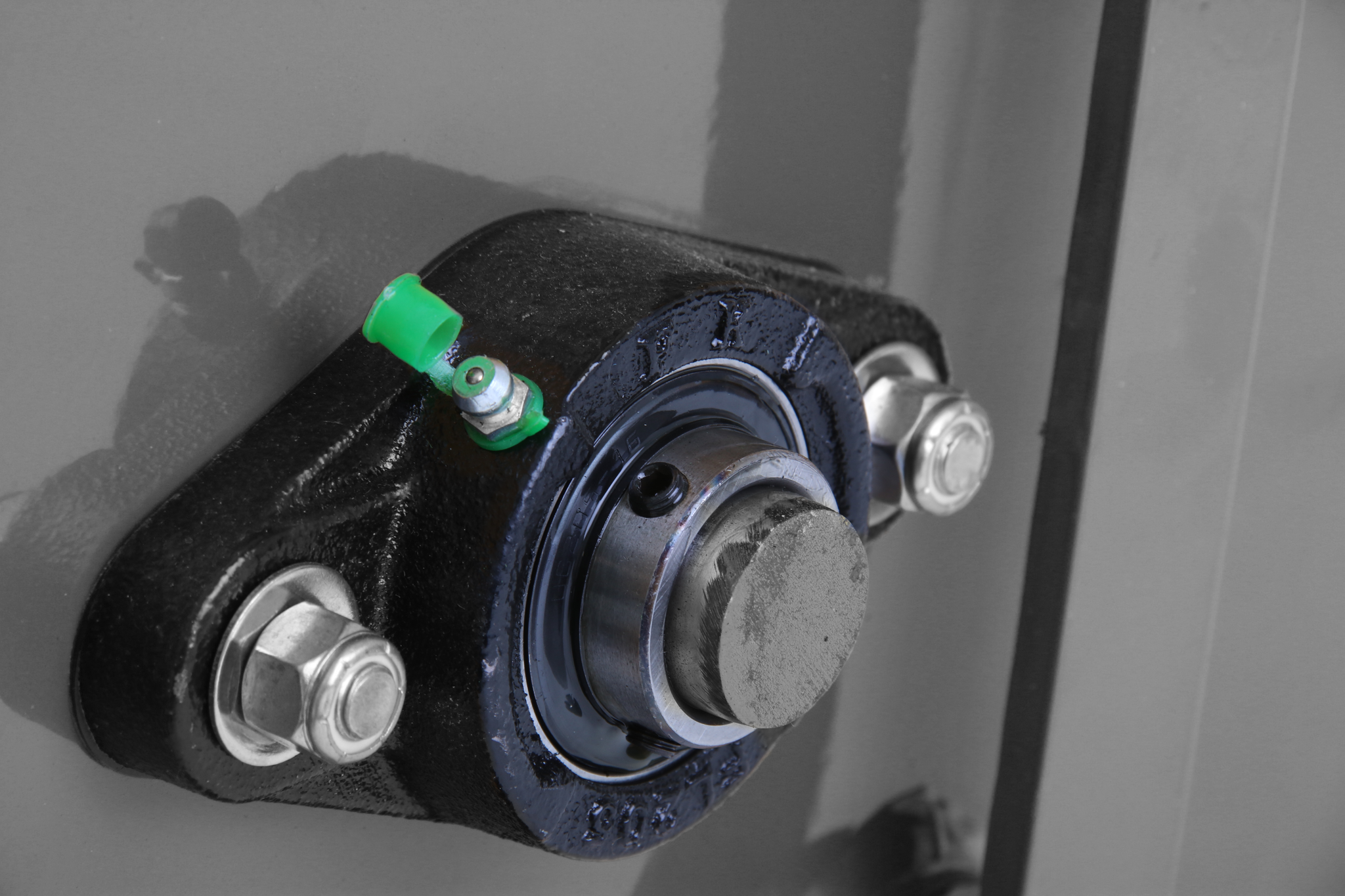

Sealed Bearings

Sealed bearings protect against environmental wear. They are also easily maintained and re-greasable.
